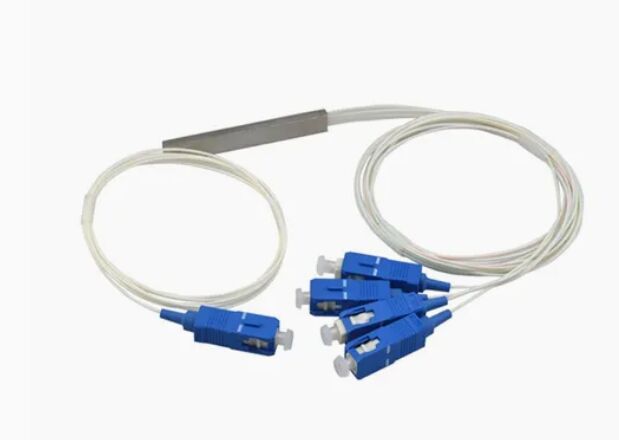

0.9mm G657A PLC Splitter Module 0.5meter Optical Plc
  • 0.9mm G657A PLC Splitter Module 0.5meter Optical Plc

0.9mm G657A PLC Splitter Module 0.5meter Optical Plc

Place of Origin China
Brand Name Honghui
Certification CE, RoHS
Model Number 1x4
Document plc splitter.pdf
Product Details
Condition:
New
Storage Temperature (°c):
-40~+85degree
Fiber Size:
0.9mm G657A SM 0.5meter Length, LSZH
Wavelength:
1310-1520nm
Operating Temperature:
-40~+85degree
Allowed Lateral Pressure:
100(N/100mm)<1000(N/100mm)
Highlight:

g657a plc splitter module

,

0.5meter optical plc

,

plc splitter module 0.5meter

Payment & Shipping Terms
Minimum Order Quantity
10
Delivery Time
15days
Payment Terms
T/T
Product Description

Minimodule Type 1x4 PLC Optical Splitter - Low Insertion Loss for Fiber Networks-Reliable Fiber Optic Distribution

I. Core Miniaturization Advantages

  • Ultra-Compact Size: Module dimensions measure only 60*7*4mm (or customizable smaller), reducing volume by 70% compared to traditional box-type splitters. Ideal for cramped installation spaces like fiber optic junction boxes and termination enclosures.
  • Lightweight Design: Weighing just 5g per module, it significantly reduces load on junction boxes and patch panels, preventing structural deformation during installation.

II. Core Optical Performance

  • Ultra-Low Insertion Loss: ≤7.3dB for 1*4 models minimizes signal attenuation, ensuring robust FTTH "last-mile" signal strength.
  • Exceptional Splitting Uniformity: ≤0.8dB channel-to-channel variation ensures balanced output power across four ports, eliminating speed fluctuations for end users.

III. Structural Durability

  • Robust Micro-Encapsulation: High-precision injection-molded housing withstands 1000g impact resistance, preventing mechanical damage during transport or installation.
  • Superior Vibration Resistance: Passed 10-500Hz mechanical vibration testing (0.35mm amplitude), ensuring stable performance in industrial and vehicle-mounted environments.

IV. Application Compatibility

  • FTTH Deployment: Miniaturized design fits household weak current boxes and楼道分线盒, making it the ideal choice for fiber-to-the-home "last-mile" solutions.
  • GPON/EPON Network Ready: Low-loss and wide-temperature characteristics seamlessly integrate with Passive Optical Networks (PON), supporting large-scale user coverage.

V. Quality & Production Assurance

  • Telecom-Grade Standards: Fully compliant with Telcordia GR-1221/1209, validated by 1000-hour high-temperature/humidity aging tests.
  • 100% Factory Testing: Every module undergoes 10 parameter checks (including insertion loss and uniformity), with defect rate ≤0.1%.
