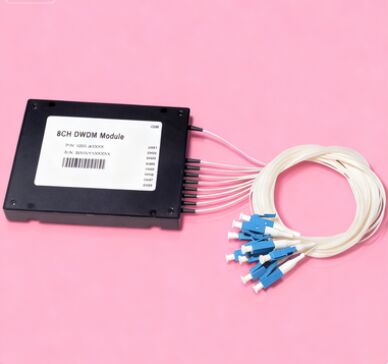

PER Channel Data Transmission Module DWDM High Channel Isolation Dwdm 100g
|
PER Channel Data Transmission Module DWDM High Channel Isolation Dwdm 100g
| Place of Origin | CHINA |
| Brand Name | Honghui |
| Certification | ISO9001 |
| Model Number | Film Thin Filter DWDM |
| Document | dwdm moudle spec.pdf |
Product Details
Insertion Loss:
≤0.3 PER Channel （reflection Band）
PDL:
≤0.2 DB
Fiber Type:
G657A1 Fiber
Communication Type:
Single Or Dual Fiber
Isolation:
≥35 DB (Pass Adjacent Channel)
Return Loss:
≥45 DB
Temperature Dependent:
≤0.003 DB/°C
Power Handling:
500 MW
Polarization Mode Dispersion:
≤0.10 Ps
Fiber Length:
0.5~2.0 M
Directivity:
≥50 DB
Highlight:
PER channel Module DWDM
,Data Transmission Module DWDM
,High Channel Isolation dwdm 100g
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiated
Packaging Details
Carton
Delivery Time
25 work days
Payment Terms
T/T
Supply Ability
1000pcs
Product Description
TFF Type DWDM Module for High-Performance Data Transmission
TFF Type DWDM Module with 100GHz Wavelength Spacing for High-Performance Data Transmission and High Channel Isolation
The TFF DWDM module supports 100GHz wavelength spacing, enabling a breakthrough increase in system capacity. This filter type dense wavelength division multiplexer achieves parallel transmission of more optical channels in a single fiber, significantly increasing total system capacity while maintaining sufficient channel isolation.
Key Features
- Ideal for bandwidth-intensive applications: data center interconnection, 5G fronthaul networks, and metropolitan backbone networks
- Effectively alleviates network congestion without requiring additional optical fibers
- Provides flexible and economical solution for future optical communication system expansion
Technical Specifications
| Parameter Name | Specifications |
|---|---|
| Working wavelength range | C-band (1525 nm ~ 1565 nm) |
| Channel spacing | 100 GHz (0.8 nm) |
| Insertion loss | ≤ 1.5 dB (typical value ≤ 1.2 dB) |
| Channel isolation degree | ≥ 35 dB (adjacent channel) |
| Polarization related loss | ≤ 0.1 dB |
| Return loss | ≥ 45 dB |
| Temperature stability | -5°C ~ +70°C wavelength drift ≤ 0.02 nm |
| Fiber type | SMF-28e+ single-mode fiber |
| Connector Type | FC/APC or SC/APC |
| Overall dimensions | 140 mm × 110 mm × 20 mm |
Energy Efficiency
The TFF DWDM module features energy efficiency optimization with low-loss optical paths and efficient thermal management technology. It reduces power consumption by over 30% compared to traditional solutions, lowering operating costs while supporting green data center initiatives and sustainable optical communication networks.
Signal Integrity
The module maintains ≥ 35dB channel isolation at 100GHz spacing, effectively suppressing crosstalk and nonlinear effects between adjacent channels. This ensures signal purity during long-distance transmission, reduces bit error rates, and improves system reliability - critical for financial transactions and remote healthcare applications.
Operational Stability
Advanced thin film filter technology provides precise wavelength selection with minimal drift across temperature ranges and long-term use. The module offers excellent resistance to environmental interference (vibration, humidity) for highly reliable wavelength multiplexing in optical communication systems requiring long-term stable operation.
